The mower deck for my Custom needed a long overdue going over. Here are some pictures of the work I did to it.

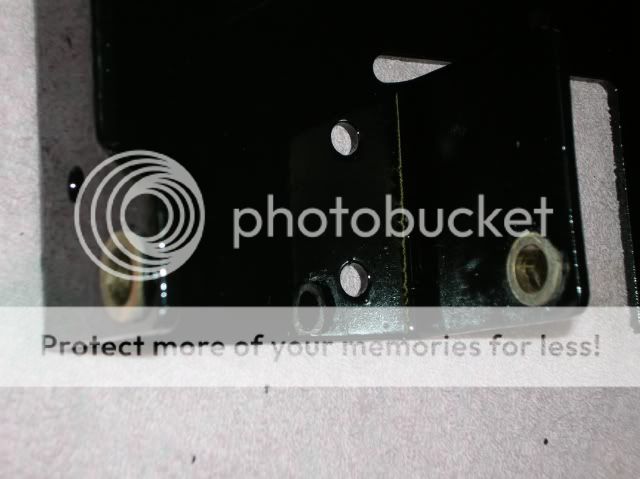

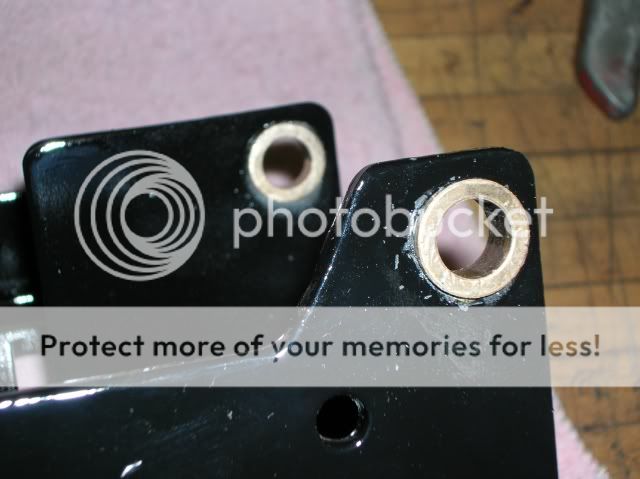

The first issue I had to address was the actuator shaft. When the shaft rotates in the mount, it wears grooves into the shaft. I tried welding one to fill in the grooves but I wasn't happy with the results. My alternative was to use flanged bronze bushings. The bushings have a 5/8"OD, so I had to enlarge the holes in the mount for the bushings.

Custom Mower Deck Rehab ClutchShaftBushings01
Custom Mower Deck Rehab ClutchShaftBushings02

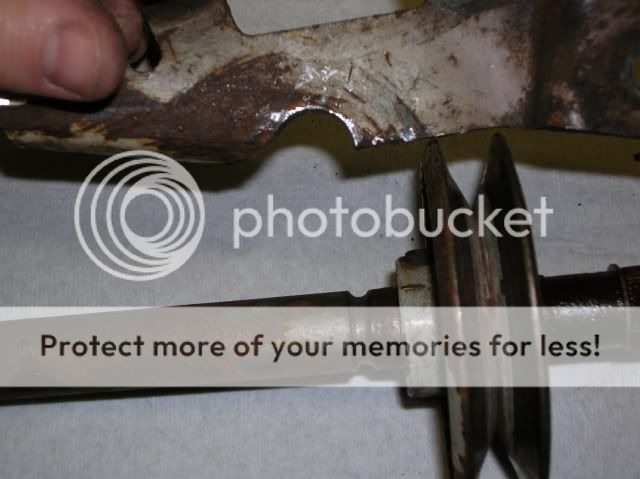

The other problem I had was with the idler arm. Whenever I disengaged the deck, the idler arm would hit the deck drive shaft and was wearing a groove into the drive shaft and idler arm.

Custom Mower Deck Rehab OldClutch03
Custom Mower Deck Rehab OldClutch04

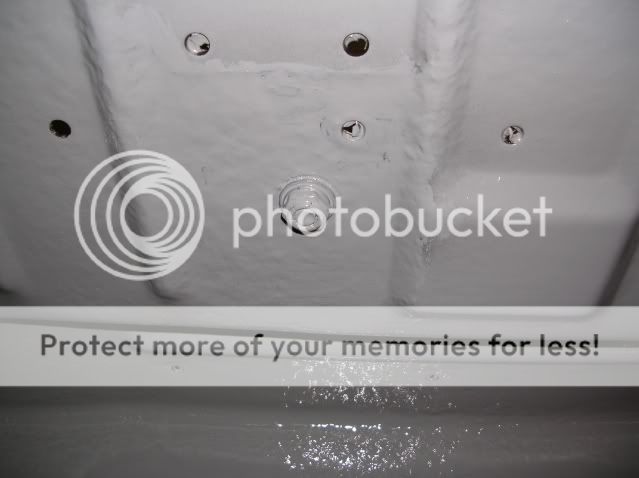

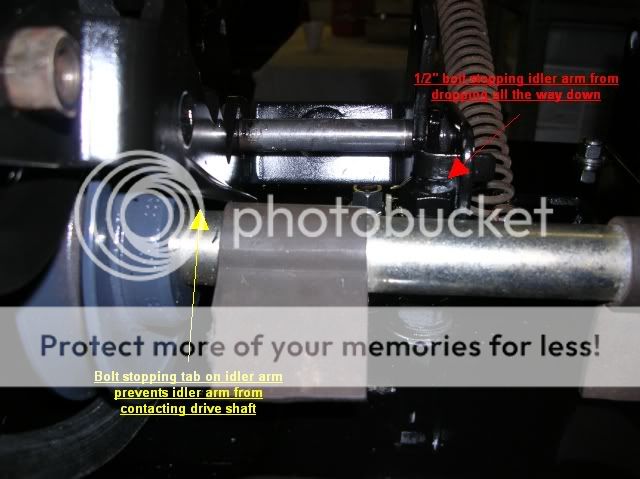

I decided to use a 1/2" bolt mounted to the deck to stop the idler arm from rotating forward enough to hit the drive shaft.

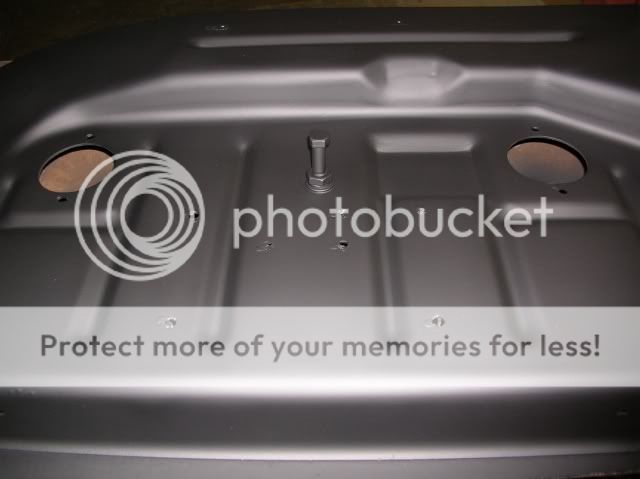

Custom Mower Deck Rehab IdlerArmStop02
Custom Mower Deck Rehab IdlerArmStop03
Custom Mower Deck Rehab MowerDeckClutch01
Custom Mower Deck Rehab MowerDeckClutch02

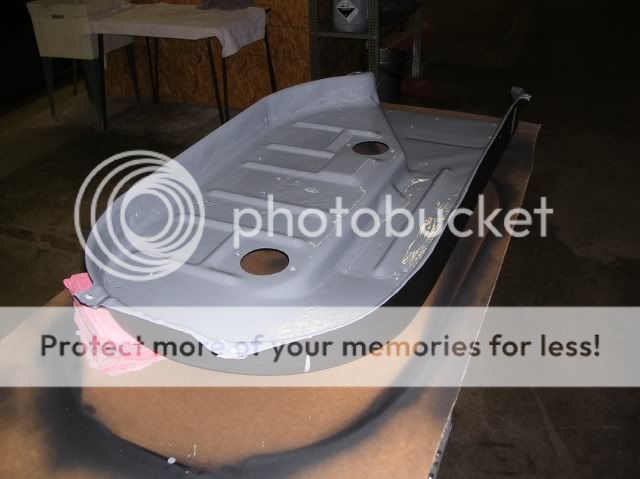

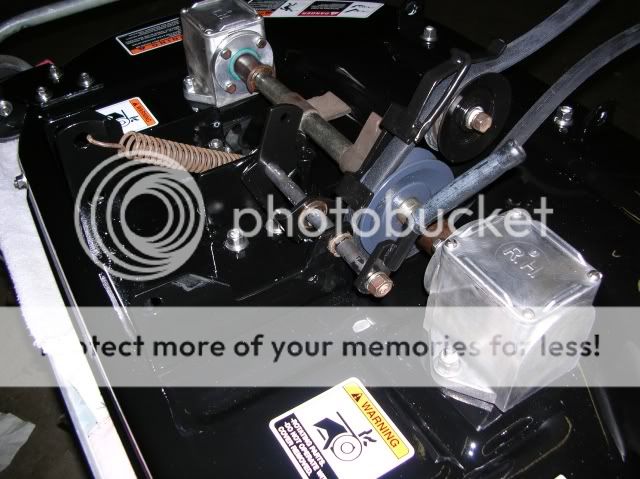

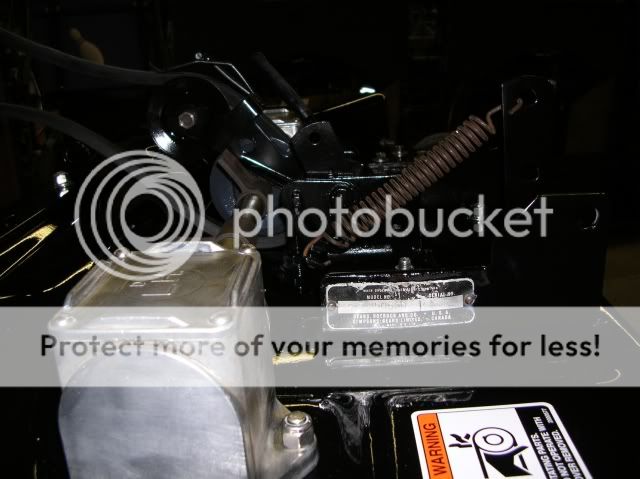

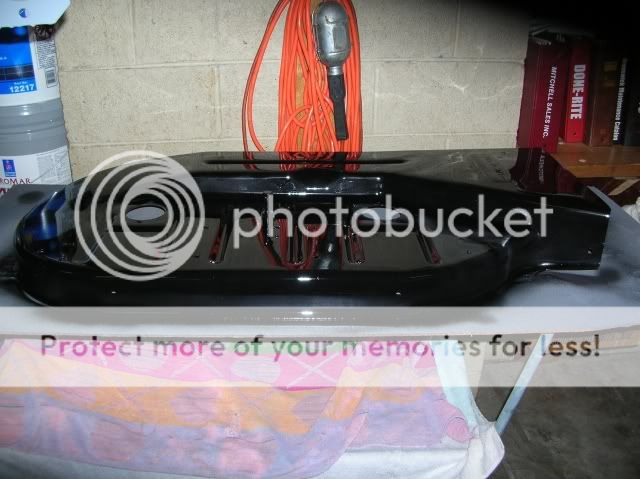

I stripped off the old paint, cleaned off the rust on the underside and repainted the deck. I primed the whole deck with Rust-Oleum Rust Reformer. I was going to paint it the original white but when I saw the black primer, I thought black would look HOT! I painted the underside with 3 coats of gloss gray enamel and I did the top with 3 coats of flat black and 3 clear coats. The pictures don't really do it justice. It turned out better than I imagined it would when I started. I replaced all of the original hardware with stainless hardware. I bought all of the warning decals from Sears. They are from a 52" commercial mower.

Custom Mower Deck Rehab NewPaint03
Custom Mower Deck Rehab NewPaint01
Custom Mower Deck Rehab NewPaint02

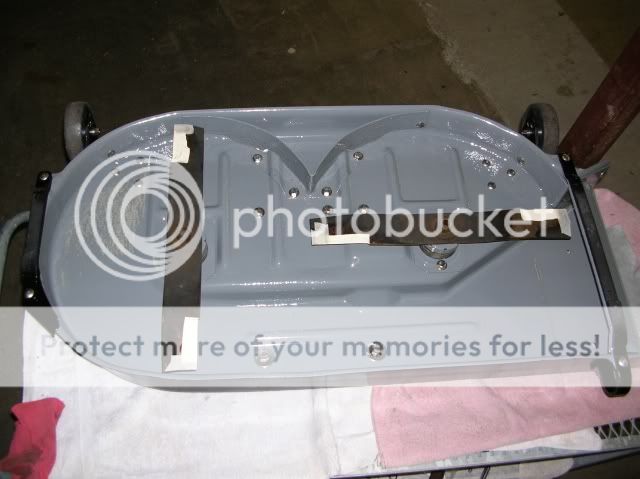

Custom Mower Deck Rehab Finished01

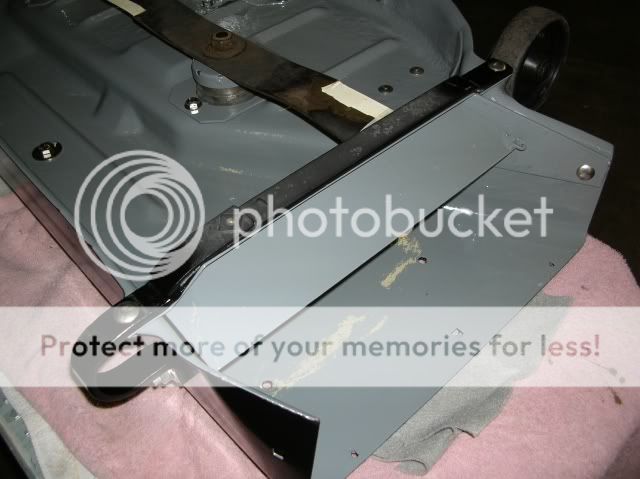

Custom Mower Deck Rehab Finished02

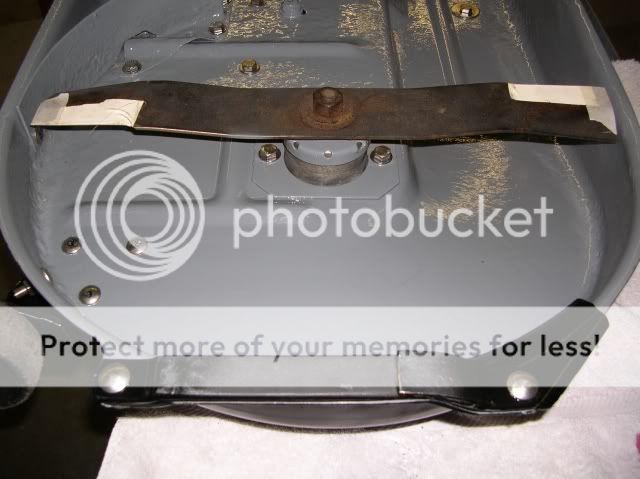

Custom Mower Deck Rehab Finished07
Custom Mower Deck Rehab Finished04
Custom Mower Deck Rehab Finished05

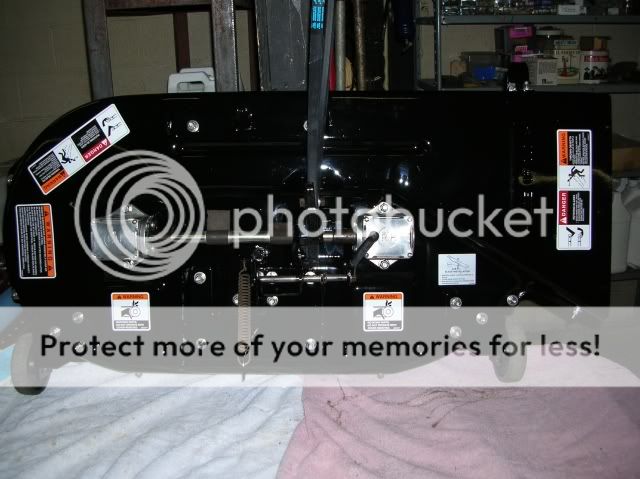

Custom Mower Deck Rehab Finished06


Last edited by Mike T. on April 25th 2009, 11:04 pm; edited 1 time in total

Mike T.

Number of posts : 15
Registration date : 2009-01-04

Back to top Go down

Custom Mower Deck Rehab Empty Re: Custom Mower Deck Rehab

Post  Mike T. on April 20th 2009, 4:17 pm

I have no idea why the pictures didn't display in my post. If anybody can help me figure that out, I'd sure appreciate it.

Thanks,
Mike

Mike T.

Number of posts : 15
Registration date : 2009-01-04

Back to top Go down

Custom Mower Deck Rehab Empty Re: Custom Mower Deck Rehab

Post  Mike T. on April 25th 2009, 11:22 pm

I figured out how to get the pics to work. Here are a couple before I put it on the tractor and used it.

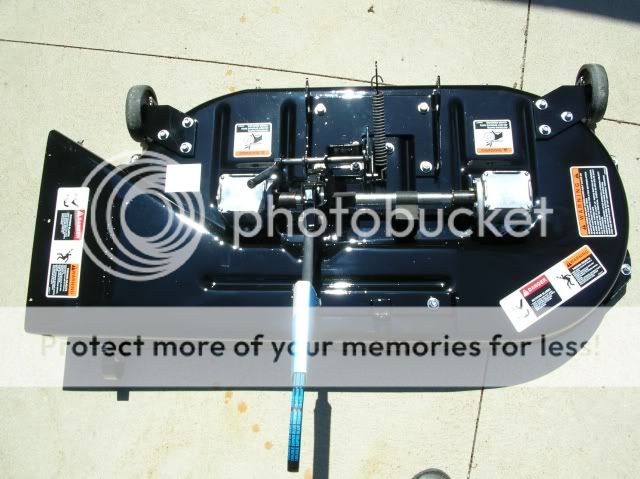

Custom Mower Deck Rehab Finished08

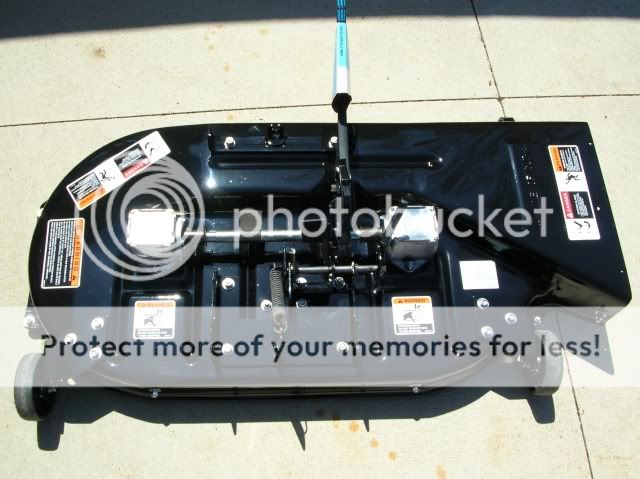

Custom Mower Deck Rehab Finished09
