Laminated rear counterweight

3 posters

Go down

Laminated rear counterweight Empty Laminated rear counterweight

Post  Joe K May 22nd 2010, 5:32 pm

Laminated rear counterweight Searstractorrearcounter

Shown is a back weight I made from 1/2" thick steel plates sheared to 11"x12" square. I tapped out the 2 lower
holes in the frame for 1/2"-13 bolts. I shaved the heads off in the lathe of a couple of 6 inch long bolts and
double nutted them to the frame; these formed the studs on which the plates could slide over.
The upper bolts (5-1/2" long) fit into the existing tapped holes.
It worked out much easier than trying to lug a solid block up there (about 140 lbs.)
Thanks,
Joe K Smile

Joe K

Number of posts : 5
Age : 66
Registration date : 2010-05-15

Back to top Go down

Laminated rear counterweight Empty your tractor picture

Post  branger1 October 19th 2010, 3:16 pm

Hello,
How did you get your picture onto this forum? branger1@charter.net
Thank you,
Brian

branger1

Number of posts : 4
Registration date : 2010-06-23

Back to top Go down

Laminated rear counterweight Empty Posting photos

Post  Joek October 19th 2010, 10:14 pm

Hello,
I use web photo sharing site to upload my pictures to (there are lots of free sites available). Your photos can then be downloaded to
any website or forum. It takes a little tinkering to figure it out the first couple times...
Thanks,
Joe

Joek
Guest


Back to top Go down

Laminated rear counterweight Empty Re: Laminated rear counterweight

Post  branger1 October 20th 2010, 7:50 am

Hi Joe,
Thank you and have a great day!!!
Brian

branger1

Number of posts : 4
Registration date : 2010-06-23

Back to top Go down

Laminated rear counterweight Empty Re: Laminated rear counterweight

Post  vwjake October 20th 2010, 1:13 pm

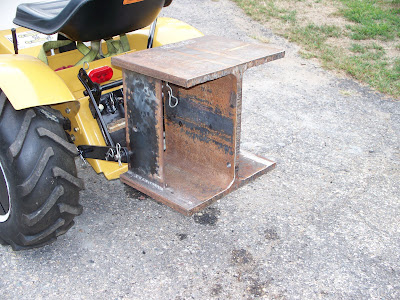

Very nice counterweight. I like how compact it is. Here's a pic of the one I made a few weeks back. It's about 100lbs.
Laminated rear counterweight 100_1447

vwjake

Number of posts : 26
Registration date : 2010-07-23

Back to top Go down

Laminated rear counterweight Empty RE: Rear laminated counterweight

Post  Jhoe K October 20th 2010, 10:52 pm

Hello,
Pretty neat fabrication!
I like the replacement rear tires; are those on the original rims?
Thanks,
Joe K

Jhoe K
Guest


Back to top Go down

Laminated rear counterweight Empty Re: Laminated rear counterweight

Post  vwjake October 20th 2010, 11:47 pm

The counterweight doubles as a nice stool too when it's mounted on the tractor. The tires are Carlisles. As far as I know they are the original rims. The weights mounted to them are from a Simplicity I think. The tires were on the tractor when I bought it this summer.

vwjake

Number of posts : 26
Registration date : 2010-07-23

Back to top Go down

Laminated rear counterweight Empty Re: Rear laminated counterweight

Post  Joeh K October 21st 2010, 10:21 pm

Thanks for the info!
Joe K Smile
